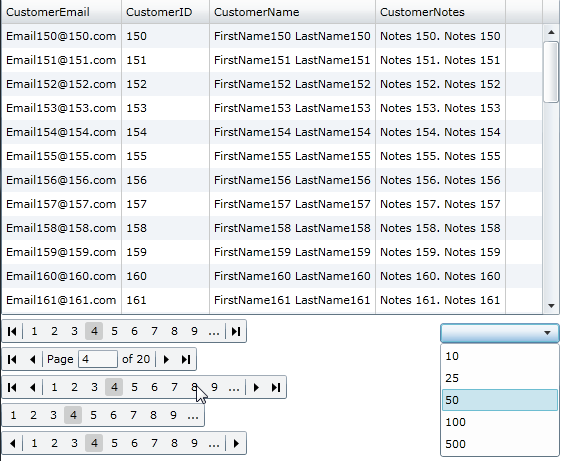

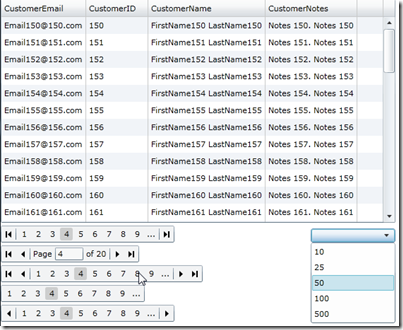

Live Sample: at this link

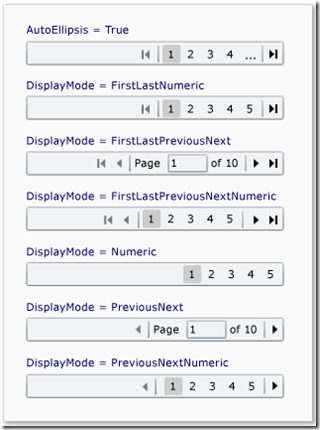

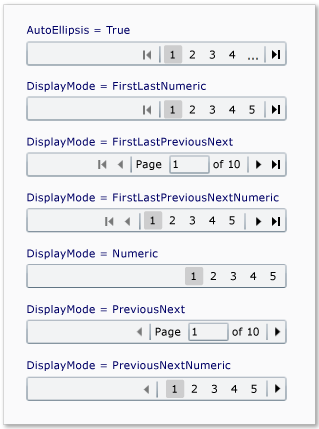

I really like the Silverlight Data Pager Control. It has a lot of cool features. It is primarily designed to be used with a PagedCollectionView, and supports the following modes:

(image © Microsoft Corporation)

The problem with the Data Pager is that it only works when you have all the data loaded. If you load all your records into a DataGrid, and hook up the Data Pager, it will easily page the contents of the DataGrid if you wrap the items in a PagedCollectionView, but, if you want to pull up each page from the server (using web services), it wont work. Your only option is to use it with the Domain Data Source control and WCF RIA.

Faking A Collection For The Data Pager

The issue is that the Data Pager Control, or the PagedCollectionView that it is hooked up to, needs to have access to the entire collection to figure out how many pages to display links for.

The sample code creates a “fake collection” of items, tells the PagedCollectionView how many items per page, and the Data Pager Control happily shows everything correctly. When the Data Pager is clicked, a Silverlight behavior detects that the Data Pager has changed the page (in it’s fake collection of items), and a web service call is made to actually get the page requested.

When the page comes back from the web service, the “fake collection” is updated and the PagedCollectionView is refreshed. This is done because in the case of a search, the collection may change from 100 to 50 items. The records to display per page is also updated.

The Web Service

This is the web service method that provides one page of records (colCustomerRecord). However, notice the one page of records is wrapped in an object (objCustomerSearchResult), that returns the total records, and the number of records per page, as well as the current page the collection represents. These are the items that the PagedCollectionView will need to provide to the Data Pager Control, for it to properly work:

    #region GetCustomers
    [WebMethod]
    public CustomerSearchResult GetCustomers(int intPage, int intRecordsPerPage)
    {
        CustomerSearchResult objCustomerSearchResult = new CustomerSearchResult();
        objCustomerSearchResult.colCustomerRecord = new List<CustomerRecord>();
        var colCustomers = from Customers in SampleDataSource()
                            select Customers;
        // Compute the CurrentPage
        int CurrentPage = ((intPage * intRecordsPerPage) - intRecordsPerPage);
        // Implement paging
        objCustomerSearchResult.colCustomerRecord = colCustomers.Skip(CurrentPage).Take(intRecordsPerPage).ToList();
        objCustomerSearchResult.CurrentPage = CurrentPage;
        objCustomerSearchResult.RecordsPerPage = intRecordsPerPage;
        objCustomerSearchResult.TotalPages = (SampleDataSource().Count / intRecordsPerPage);
        return objCustomerSearchResult;
    }
    #endregion



In the Silverlight project, here is the Model:



    #region GetCustomers
    public static void GetCustomers(int intPage, int intRecordsPerPage,
        EventHandler<GetCustomersCompletedEventArgs> eh)
    {
        // Set up web service call
        WebServiceSoapClient WS = new WebServiceSoapClient();
        // Set the EndpointAddress
        WS.Endpoint.Address = new EndpointAddress(GetBaseAddress());
        WS.GetCustomersCompleted += eh;
        WS.GetCustomersAsync(intPage, intRecordsPerPage);
    }
    #endregion



This is the method in the ViewModel,that calls the method in the Model:



    #region GetCustomers
    private void GetCustomers()
    {
        // Call the Model to get the collection
        Model.GetCustomers(CurrentPage, RecordsPerPage, (Sender, EventArgs) =>
        {
            if (EventArgs.Error == null)
            {
                CustomerSearchResult objCustomerSearchResult = EventArgs.Result;
                // Clear the current Customer records
                colCustomerRecord.Clear();
                // loop thru each item
                foreach (var Customer in objCustomerSearchResult.colCustomerRecord)
                {
                    // Add to the collection
                    colCustomerRecord.Add(Customer);
                }
                // Update FakeEnumerableCollection
                FakeEnumerableCollection.Clear();
                for (int i = 1; i <= (objCustomerSearchResult.RecordsPerPage *
                    objCustomerSearchResult.TotalPages); i++)
                {
                    FakeEnumerableCollection.Add(i);
                }
                CustomerRecordPCV.PageSize = objCustomerSearchResult.RecordsPerPage;
                CustomerRecordPCV.Refresh();
            }
        });
    }
    #endregion



Notice that the PagedCollectionView,  CustomerRecordPCV is refreshed. The Data Pager Control is bound to this collection. When the collection is refreshed, the Data Pager control will be refreshed.

All we needed to do to hook up the PagedCollectionView to the FakeEnumerableCollection, was to put one line (CustomerRecordPCV = new PagedCollectionView(FakeEnumerableCollection)), in the constructor of the View Model:



    public MainPageModel()
    {
        // Set the command properties
        SetRecordsPerPageCommand = new DelegateCommand(SetRecordsPerPage, CanSetRecordsPerPage);
        SetRecordsByPagerCommand = new DelegateCommand(SetRecordsByPager, CanSetRecordsByPager);
        // Get the Customers
        GetCustomers();
        // Attach CustomerRecordPCV (PagedCollectionView) to FakeEnumerableCollection
        CustomerRecordPCV = new PagedCollectionView(FakeEnumerableCollection);
    }



Paging

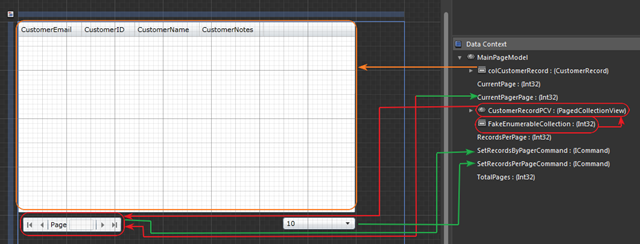

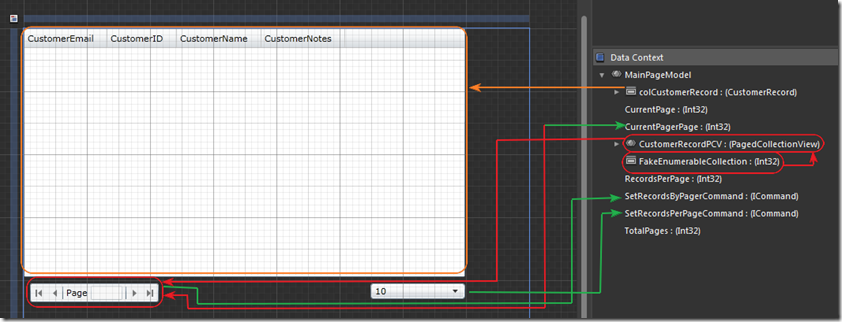

The diagram above shows how most of the elements are hooked up. Note:

• CurrentPagerPage supports two way binding. The code sample does not set it from the View Model, but it could be set from the View Model if needed. In the sample code we use this value to determine what page the Data Pager is on.
• The Data Grid is only bound to ColCustomerRecord. it has no direct connection to the Data Pager, or any collection the Data Pager is connected to.



We use a behavior to trigger an ICommand whenever the DataPager changes. This is the ICommand that is called:



    #region SetRecordsByPagerCommand
    public ICommand SetRecordsByPagerCommand { get; set; }
    public void SetRecordsByPager(object param)
    {
        CurrentPage = (CurrentPagerPage + 1);
        GetCustomers();
    }
    private bool CanSetRecordsByPager(object param)
    {
        return true;
    }
    #endregion



Faking It? Is It Worth It?

You may not like that the Data Pager is bound to “fake data” and wonder if it is worth the effort? In a project that I am working on it is. The Data Pager is a powerful control that is easily styled. I will allow the end user to switch between the different paging styles dynamically.

For the functionality, it is not a lot of code. I have covered simpler paging in Using The Silverlight DataGrid with View Model, but it does not compare to look and feel of the Data Pager Control.



Download

Download the code at this link:

http://silverlight.adefwebserver.com/ViewModelPager/ViewModelPager_Source.zip
